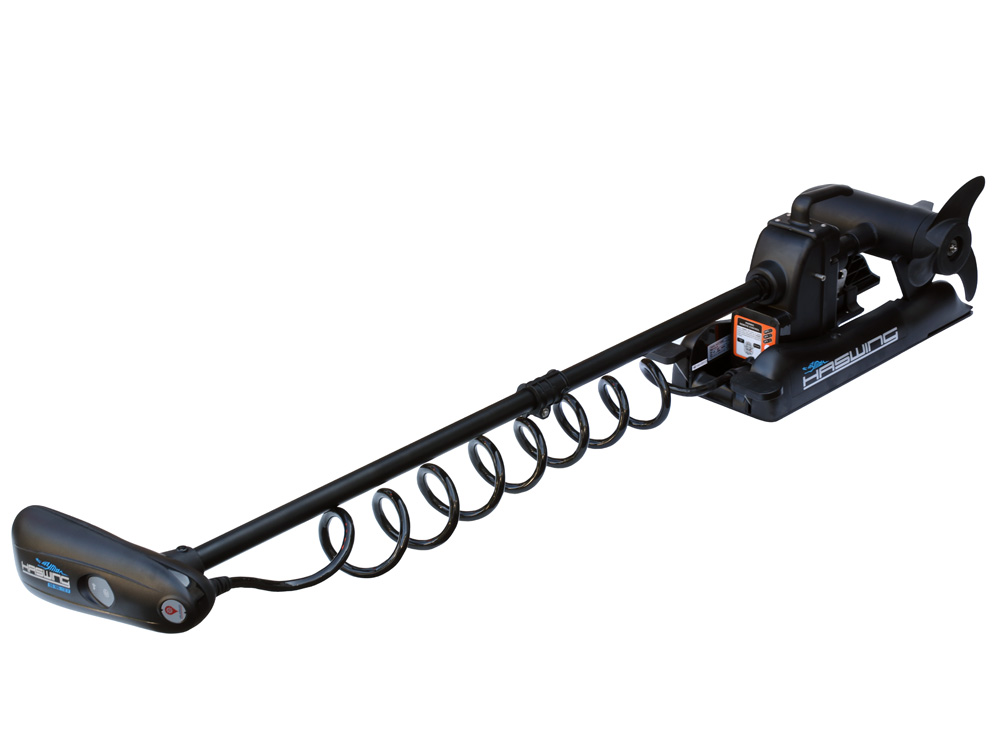

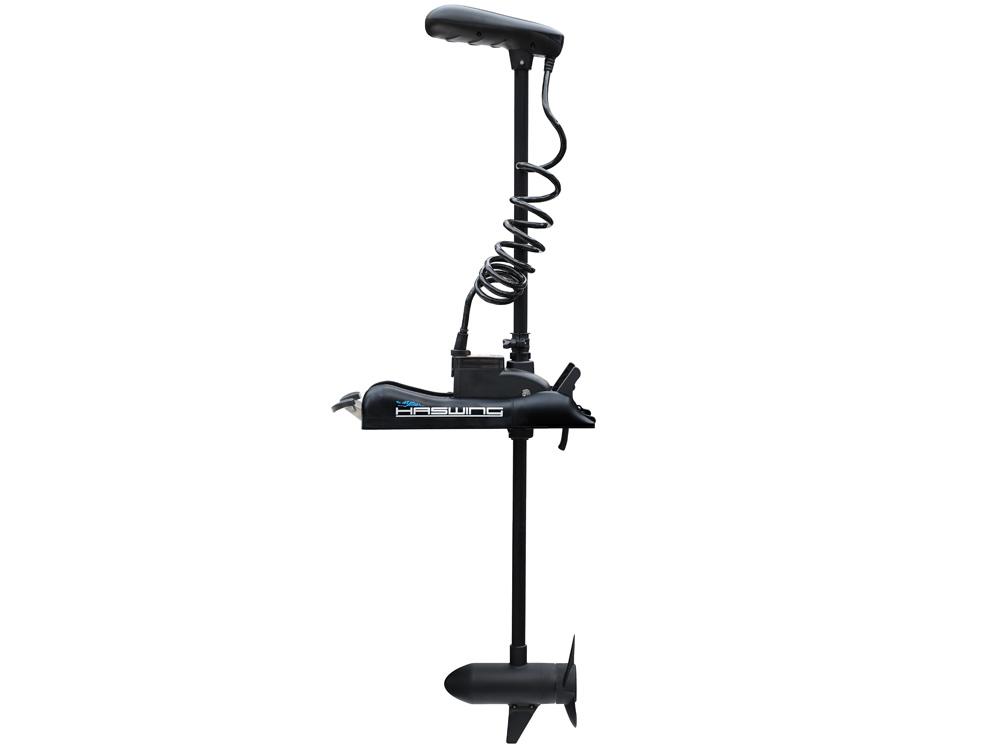

Haswing Cayman-B 55 GPS 1.6G / 660W 12V / with anchor function + cruise control / 137cm shaft

Be the first to review this product

Availability: Ready for shipment, Delivery time: 3-4 working days

€1,199.00
incl. 20% VAT, FREE Shipping

Shipping time: 3-4 working days

Specifications

HELMSMAN App Compatibility (as of April 26, 2023):

  • for Android 4.4 or higher / File size: 18MB
  • for iPhone with iOS 8 59.6MB or later
  • iPod touch with iOS 8.0 or later
  • Mac/OS 11.0 or later and a Mac with Apple M1 chip



Technical specifications of the engine:

- Motor power (continuous/max): 540W ~ 660W

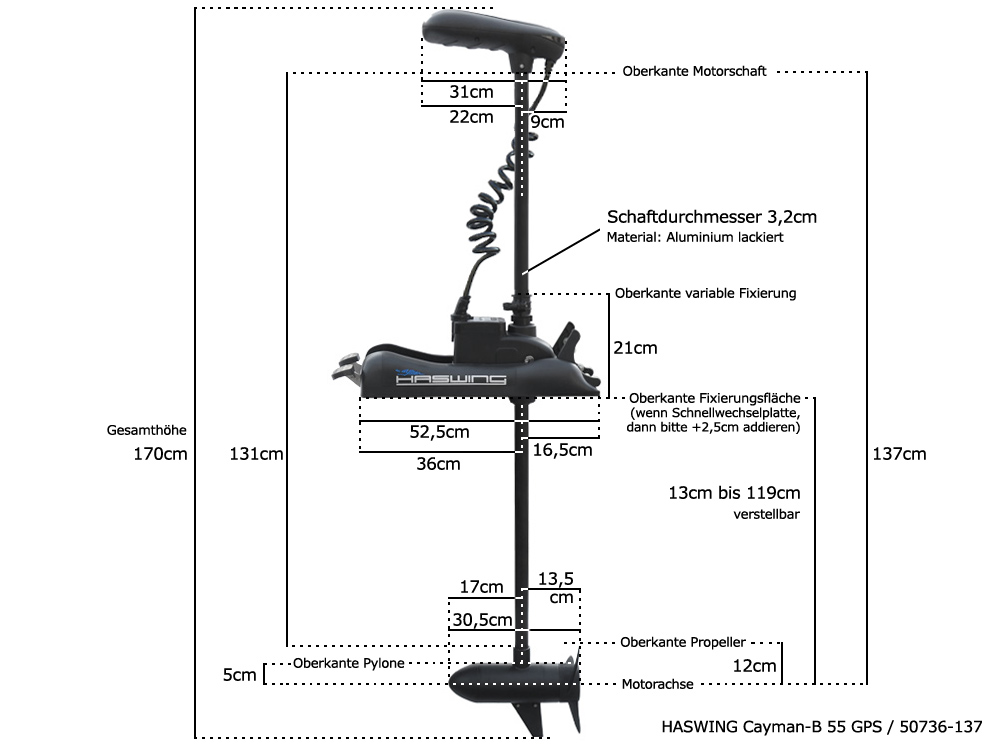

- Shaft length: 1370mm max. (infinitely adjustable immersion depth)
- Power/thrust (kp/W): up to 24.5 kp thrust (55 lbs)
- Voltage (continuous/max): 45 ~ 55A
- Operating voltage: 12V DC
- More than 360° swivel screw (all directions of travel)
- Speed adjustment: 10 levels
- Battery cable
- Battery indicator: 3 LED lights.

Catchwords

Use spaces to separate keywords. Use the quotation mark (') for related sections of text.


  • Description
  • Additional information
  • Valuations

HASWING now offers the Cayman-B 55 GPS of generation 1.6 with anchor function on the handheld radio remote control. However, the shaft length of 137cm is unchanged. The new version of the GPS motor can therefore keep the boat in the specified position without the connection to the Helmsman app of a mobile phone. The software of the motor and the accuracy of the GPS receiver have been improved on this model.

With Generation 1.6, the engine has automatic control of the driving speed (Cruise Control). Thus, the control system maintains a predetermined speed regardless of the flow speed of the water.

Optionally, there is a foot radio control for the GPS motor (model 50805-V02). This is not compatible with the foot radio control of the old generations of GPS motors. All offered products are available.

It is not possible to use the wired foot remote control of the normal Cayman B-55 (model 50800).

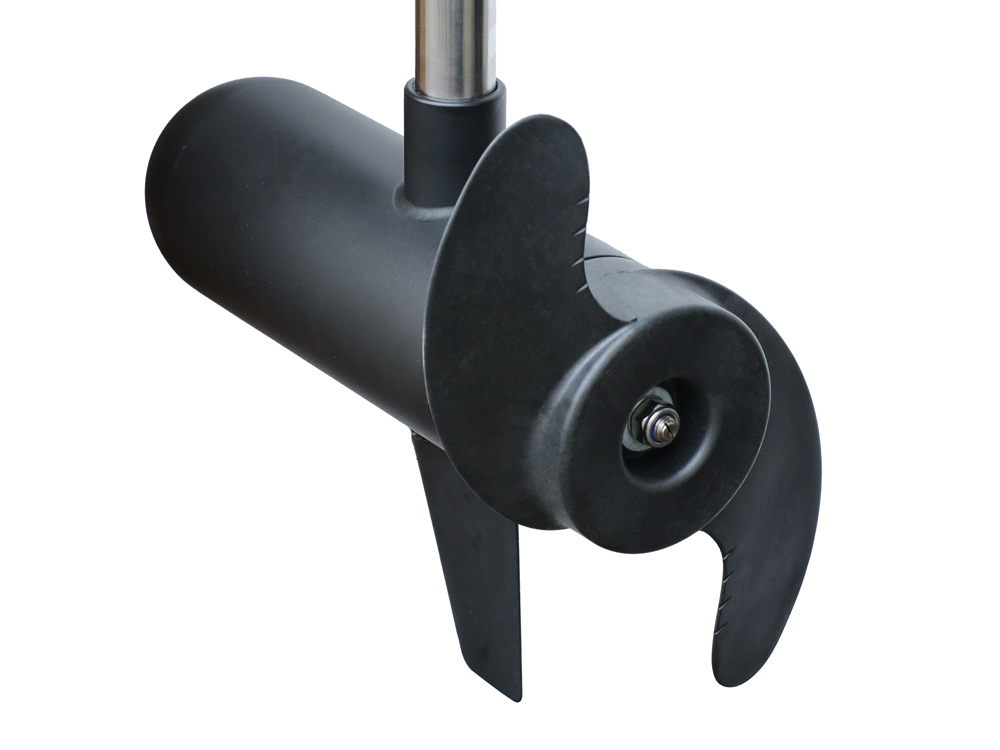

The built-in drive is a sophisticated brushed motor with 55lbs / 24.6kg thrust, which is particularly suitable for the HASWING bow motors due to its robustness, durability and quiet running.

ADVANCED GPS TECHNOLOGY

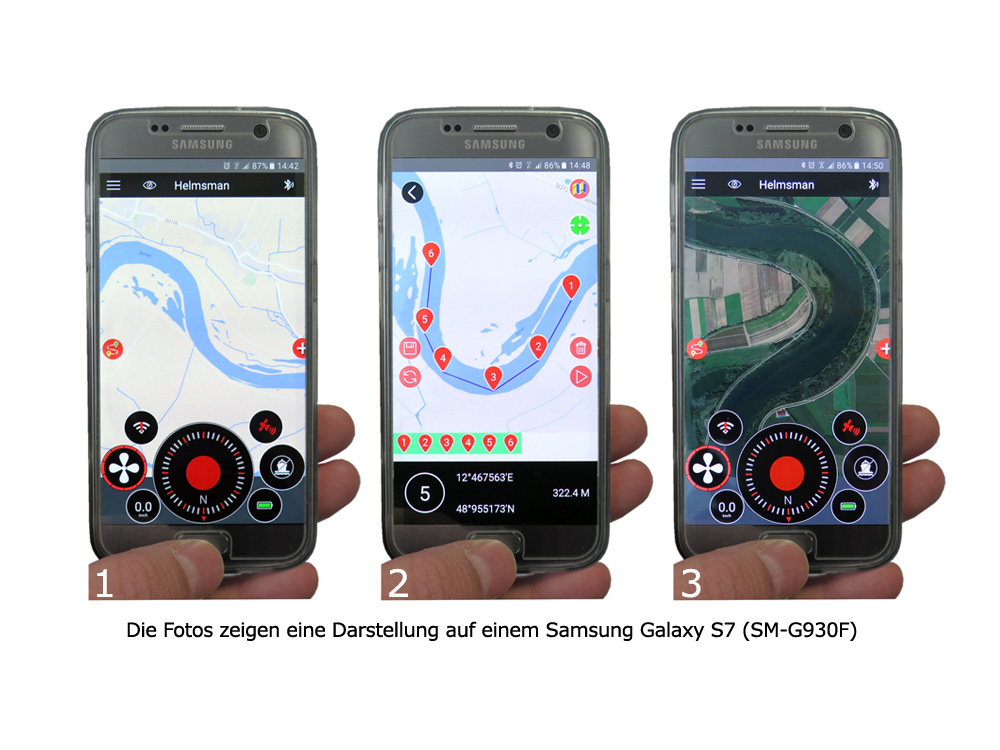

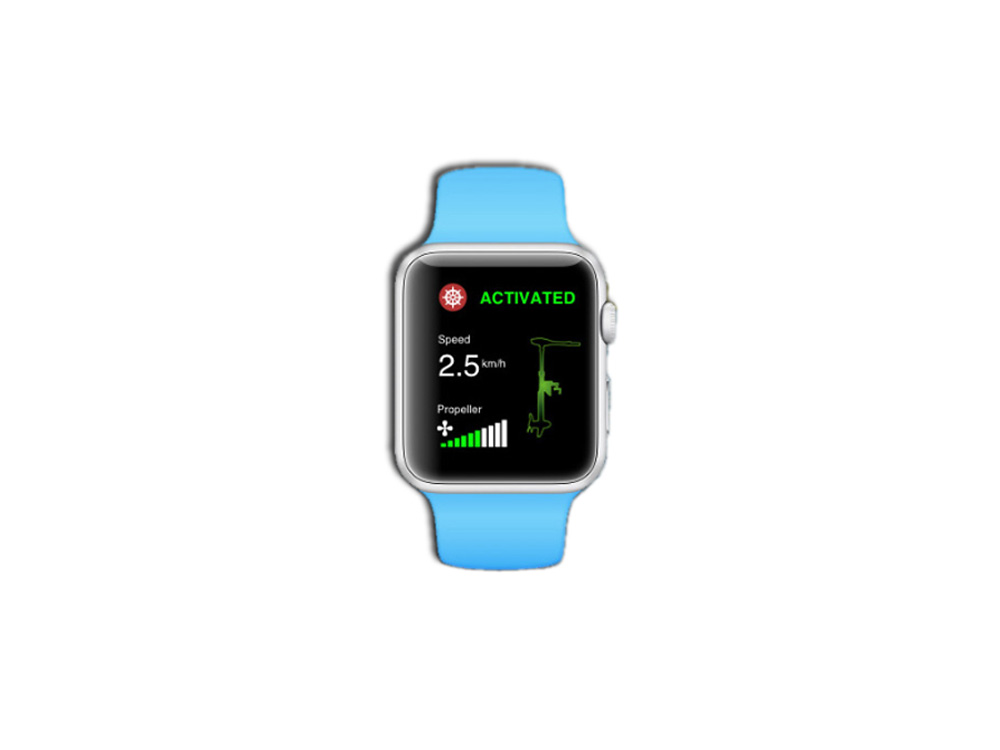

To take advantage of the full features and benefits of the Cayman B-55 GPS, simply download the Helmsman app from the App Store or Google Playstore (for almost all current smartphones) and connect your engine to your mobile phone or tab via Bluetooth. Can also be used with the Apple Watch.

  • With advanced GPS positioning technology (anchor function and waypoint input), the Cayman B-55 GPS will keep you on your desired course or location
  • GPS positioning with multiple anchor points
  • Cruise Control (automatic adjustment of the driving speed)
  • Route Memory (recording and repetition of routes)
  • 5-10 meters GPS accuracy (may vary depending on water bodies and external influences)
  • Full Motor Pilot Control (Allows you to use all the functions of the remote control on your mobile phone or tab)
  • Anchor function directly on the handheld radio remote control

All you have to do is enter your desired course or anchor points. GPS technology will do the rest for you, giving you more time catching fish and less time hunting fish.

Info about the new 24V version of the GPS motor

The Cayman-B GPS is now also available as a 24V variant with the designation Cayman-B 80 D GPS 1.6G be. This is offered a shaft length of 152cm and is also available with Cruise Control and Anchor function on the handheld radio remote control.

Position on the boat: Bow motor
Motrotype: Brushed motor
Tax type: with radio remote control
Particularities: with GPS function
Engine Thrust: 55 lbs
Power: 660 watts
Motor voltage: 12V
Engine weight: 16.0 kg

Additional information

Article 50736
Weight (kg) 22.8000
Power max. (W) 660
Nominal voltage (V) 12
Thrust (lbs) 55
Thrust force (kp) 24,5
Speed control 10 levels
Shaft length (cm) 1370mm max. (infinitely adjustable)
Battery Yes
Delivery period 3-4 business days
