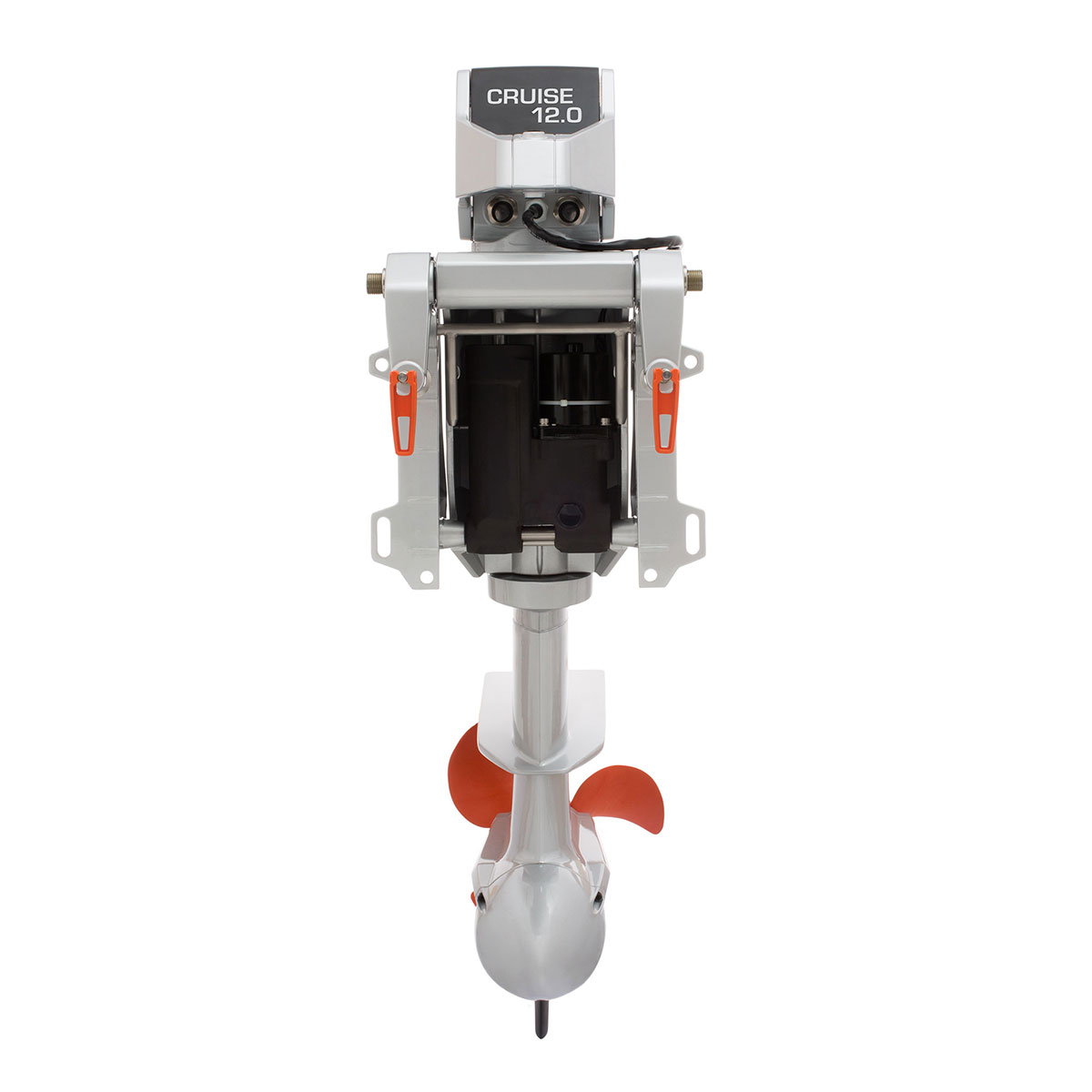

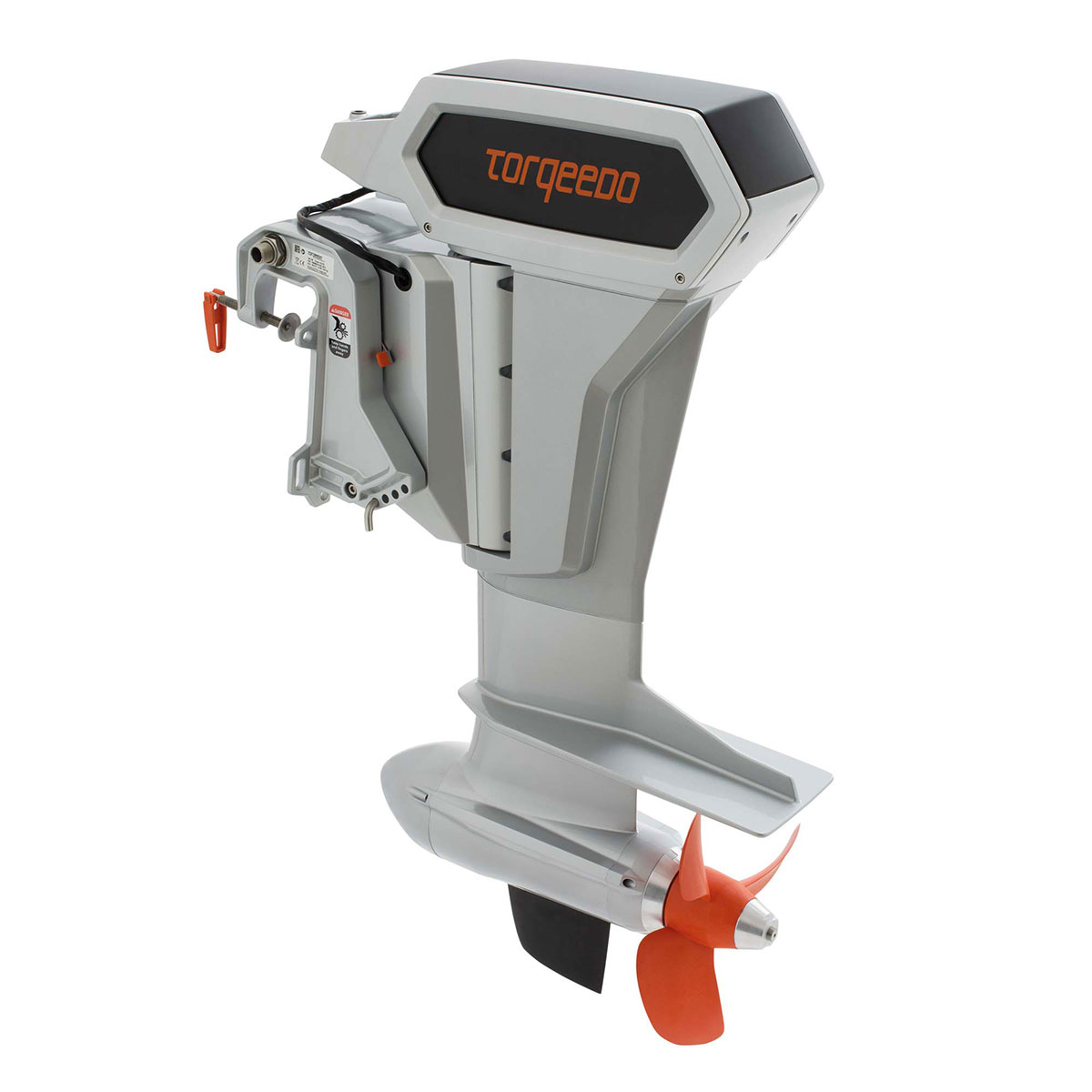

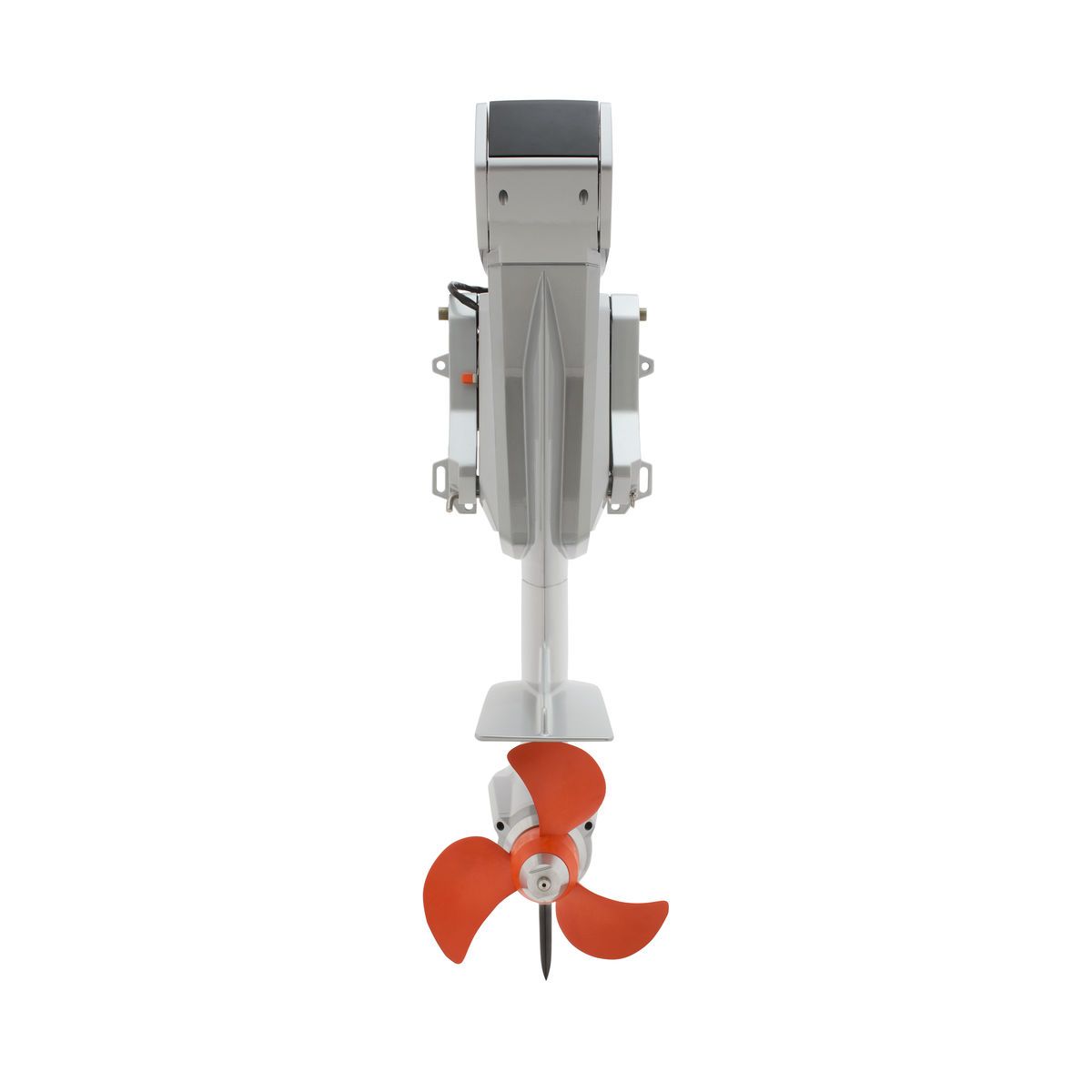

Cruise 12.0 RL TorqLink
The new Cruise 12.0 is not only an imposing appearance, it also comes up with impressive key technical data. High-tech from the stock head to the fin – and all this completely emission-free.
Comparable to a 25 hp petrol outboard, the Cruise 12.0 is easy to mount on your boat with just a few tools.
For operation, a supply of at least two (Power 48-5000) or four lithium batteries (Power 24-3500) must be provided.
Cruise 12.0 RL TorqLink - this speaks for itself:
- Powerful propulsion like a 25 hp combustion engine
- Driver's license free in Germany despite very strong performance
- Easy handling due to 48 V voltage level
- For motorboats and sailboats up to 12 tons, we recommend the Cruise 12.0.
- Possibility of connection to remote control.
- Intelligent on-board computer and full comfort of a Torqeedo electric drive
- Very robust construction – corrosion-protected, seawater-resistant and all-round waterproof (IP67)
- Extra-flat design – elegant and modern
Product
- 12 kW continuous power - powerful propulsion like a 25 hp combustion engine
- TorqLink data interface – enables fast data exchange between TorqLink components without a gateway
- Electric tilting device for comfortable operation
- Easy handling thanks to low-voltage version (48 volts)
- Very robust construction – corrosion-protected, seawater-resistant and all-round waterproof (IP67)
- Battery connection cable with water-resistant battery terminal terminals (IP 66) for connecting up to two Power 48-5000
- Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
- Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
- To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
- Please note that the engine power is not
Specifications
| Input power in watts | 12.000 |
| Propulsion power in watts | 6720 |
| Comparable gasoline outboard engine (propulsion power) | 25 hp |
| Comparable gasoline outboard engine (thrust) | 25 hp |
| Maximum overall efficiency in % | 56 |
| Stationary thrust in lbs* | ≤ 405 |
| Integrated battery | - |
| Nominal voltage in volts | 48 |
| Charging final voltage in volts | - |
| Weight (without cable & main switch) | 61.3 kg |
| Shaft length in cm | 51,2 |
| Control | Remote throttle lever |
| TorqLink | Yes |
| Steering | +-45° |
| Tipple | Electro-hydraulic tilt with overload protection / Overrun protection by hydraulic valves |
| Trim device | manual 4-stage |
| Integrated on-board computer | Yes |
| Stepless forward/reverse | Yes |
* Torqeedo static thrust figures are based on measurements in accordance with globally valid ISO guidelines. Stationary thrust specifications of fishing motors are typically measured differently and therefore come to higher values. To compare Torqeedo static thrusts with conventional fishing engines, about 50% can be added to the Torqeedo stationary thrust specification.
Additional information
| Article | 1281-00 |
|---|---|
| Lengths | 51,2 |
| Weight (kg) | 61.3000 |
| Power max. (W) | 12.000 |
| Nominal voltage (V) | 48 |
| Propulsion capacity (W) | 6720 |
| Thrust (lbs) | 405 |
| Comparable to gasoline outboard (hp) | 25 |
| Shaft length (cm) | 51,2 |
| Seaborne computer | Yes |
| Delivery period | 3-4 business days |
