HASWING now offers the Cayman-B 55 GPS in version 1.5 with anchor function on the handheld radio remote control. However, the shaft length of 137cm is unchanged. The new version of the GPS motor can therefore keep the boat in the specified position without the connection to the Helmsman app of a mobile phone. The software of the motor and the accuracy of the GPS receiver have been improved on this model.
Optionally, there is a foot radio control for the GPS motor (model 50805-V02). This is not compatible with the foot radio control of the old generations of GPS motors. All offered products are available.
It is not possible to use the wired foot remote control of the normal Cayman B-55 (model 50800).

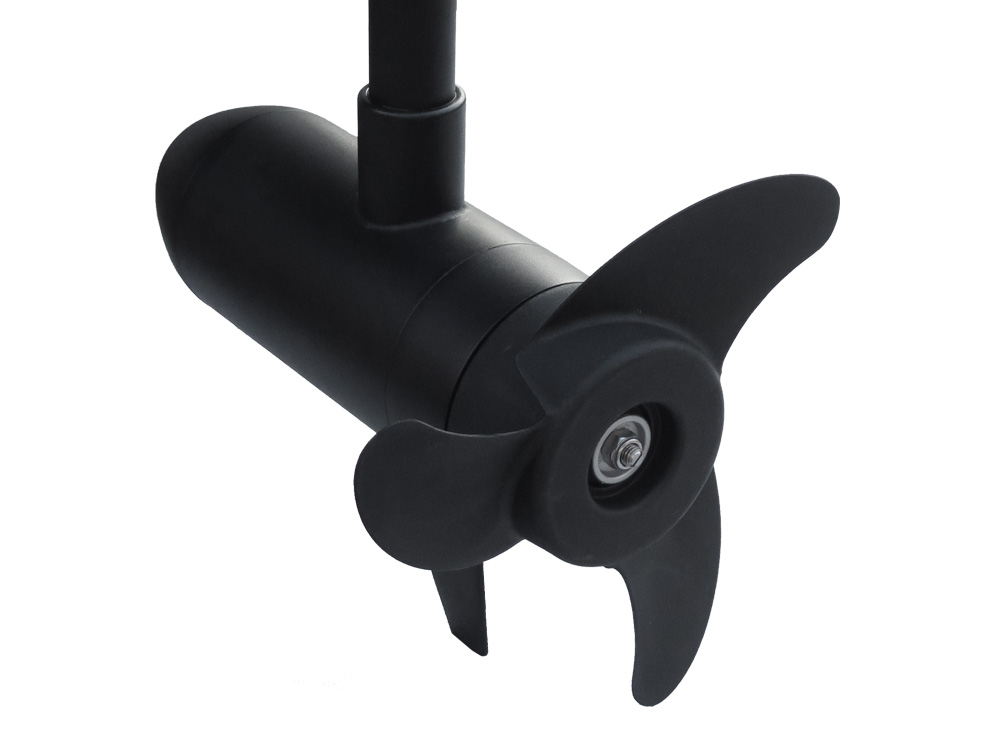

The built-in drive is a sophisticated brushed motor with 55lbs / 24.6kg thrust, which is particularly suitable for the HASWING bow motors due to its robustness, durability and quiet running.
ADVANCED GPS TECHNOLOGY

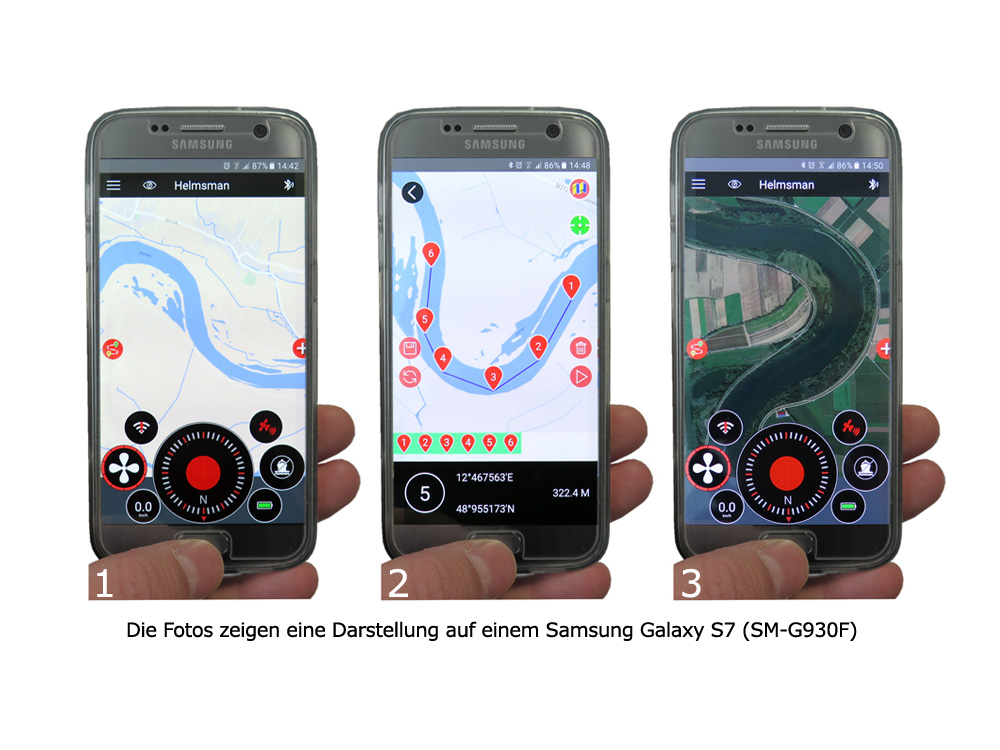

To take advantage of the full features and benefits of the Cayman B-55 GPS, simply download the Helmsman app from the App Store or Google Playstore (for almost all current smartphones) and connect your engine to your mobile phone or tab via Bluetooth. Can also be used with the Apple Watch.
- With advanced GPS positioning technology (anchor function and waypoint input), the Cayman B-55 GPS will keep you on your desired course or location
- GPS positioning with multiple anchor points
- Route Memory (recording and repetition of routes)
- 5-10 meters GPS accuracy (may vary depending on water bodies and external influences)
- Full Motor Pilot Control (Allows you to use all the functions of the remote control on your mobile phone or tab)
- Anchor function directly on the handheld radio remote control (from version 1.5)
All you have to do is enter your desired course or anchor points. GPS technology will do the rest for you, giving you more time catching fish and less time hunting fish.
Info about the new 24V version of the GPS motor
The Cayman-B GPS now also available as a 24V variant with the designation Cayman-B 80 D GPS V1.5 be. This is offered with a shaft length of 152cm and is also equipped with an anchor function on the handheld radio remote control.
HELMSMAN App Compatibility (as of August 1, 2021):
- for Android 4.4 or higher / File size: 18MB
- for iPhone with iOS 8 59.6MB or later
- iPod touch with iOS 8.0 or later
- Mac/OS 11.0 or later and a Mac with Apple M1 chip
Technical specifications of the engine:
- Motor power (continuous/max): 540W ~ 660W

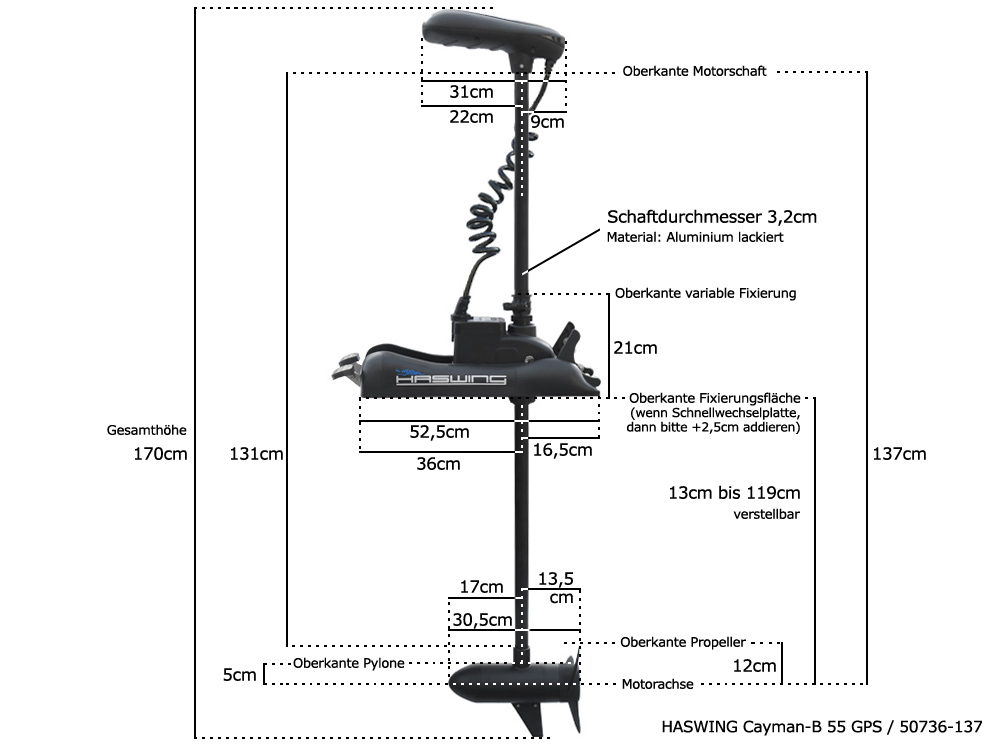

- Shaft length: 1370mm max. (infinitely adjustable immersion depth)
- Power/thrust (kp/W): up to 24.5 kp thrust (55 lbs)
- Voltage (continuous/max): 45 ~ 55A
- Operating voltage: 12V DC
- More than 360° swivel screw (all directions of travel)
- Speed adjustment: 10 levels
- Battery cable
- Battery indicator: 3 LED lights.
Additional information
| Article | 50736-137-GPS |
|---|---|
| Material | Aluminium |
| Weight (kg) | 16 kg |
| Power max. (W) | 660W |
| Thrust (lbs) | 55Ibs / 24.6kg |
| Propeller Speed (rpm) | max. 1200rpm |
| Speed control | 10 |
| Shaft length (cm) | 1370mm / 54inch |
| Battery | 3 LED lights |
| Noise level | 50 dB |
